This brand-new professional trinocular compound microscope comes equipped with an infinity Plan optical system and offers advanced features as well as research-grade performance. Its crystal clear optical and precise mechanical systems promise high-quality performances for advanced applications. The backward nosepiece design allows spacious room for convenient operation. This microscope has five high-quality Plan Achromatic objectives (4X, 10X, 20X, 40X, 100X), extreme widefield 10X & 25X eyepieces, a Kohler illumination system, a 30-degree incline on the ocular tubes for comfortable viewing, 360-degree swiveling, compensation-free trinocular head, a coaxial coarse & fine focusing system, and a 3D mechanical stage. It provides eight levels of magnification: 40X, 100X, 200X, 250X, 400X, 500X, 1000X, 2500X. It is an ideal instrument for advanced research.
This package includes a 1080p digital camera with built-in recording and HDMI output for live-viewing. The camera's compact, all-metal design makes it sturdy yet unobtrusive. Video can be viewed live on an HDMI monitor or television at a smooth 60fps, and recorded onto MicroSD (not included) at 30fps.
Features :
Infinity Corrected Optical System with High Resolution
Fully Coated Optics with Crystal Clear & Sharp Images
Precise Mechanical Control System
Reversed Nosepiece Design
Kohler Illumination System with Field Diaphragm for Lighting Control
30-Degree Inclined, 360-Degree Swiveling, Compensation Free Trinocular Head
Eight Magnification Levels: 40X, 100X, 200X, 250X, 400X, 500X, 1000X, 2500X
Intensity-Variable Transmitted LED Lighting System
Abbe Condenser with Iris Diaphragm and Filter Holder
Rack and Pinion Adjustment for Condenser
Low Position Coaxial Stage Movement Controlling Knobs
Dual Side Coaxial Coarse and Fine Focusing Control
Adjustable Interpupillary Distance
Adjustable Diopter on Eyepieces
Durable Cast Alloy Frame with Stain Resistant Enamel Finish
Five Infinity Plan Objectives Included
Extreme Widefield Eyepieces (10X & 25X)

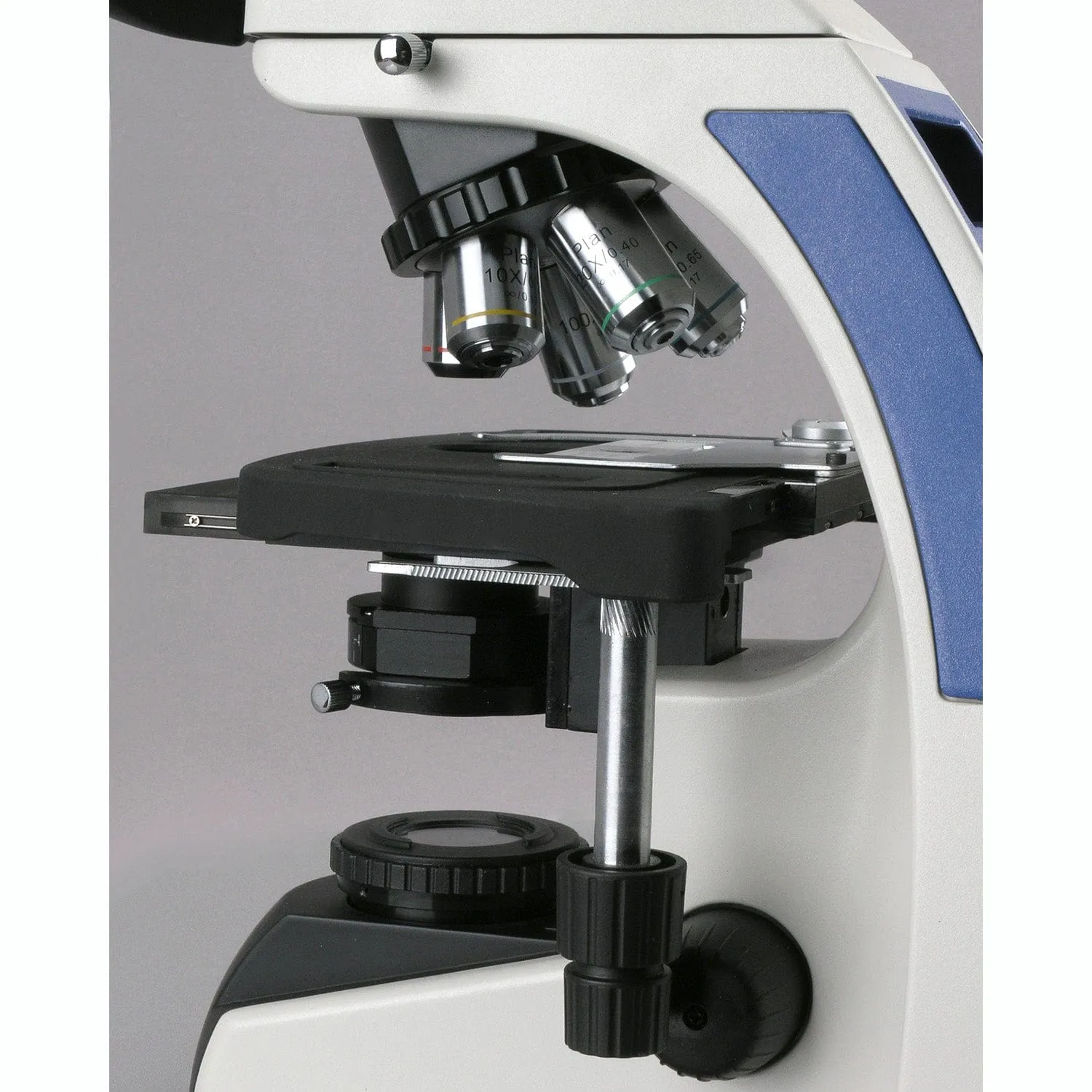

Quintuple, Reversed, Extra-Large Nosepiece with Wide, Knurled Grip for Easy Operation
Large Double Layer Mechanical Stage with Stain Resistant Coating
Upward Stage Limit Stop to Protect Objectives and Slides
Manufactured under ISO 9001 Quality Control Standards
Excellent Five (5) Year Factory Warranty
Specifications :
Optical System: infinity corrected
Nosepiece: reversed, ball-bearing quintuple
Head: gemel type trinocular head, 30-degree inclined
Eyepiece: high eye-point eyepieces, WF10X22mm & WF25X
Objectives: infinity plan objective 4X, 10X, 20X, 40X (spring), 100X (spring, oil)
Focusing: low position coaxial focus system
Focusing Range: 1-3/16" (30mm)
Interpupillary Adjustment Range: 2-3/16" - 3" (55-75mm)
Mechanical Tube Length: 6-5/16" (160mm)
Mechanical Stage: 8.5" x 5.9" (216mm x 150mm)
Stage Traveling Range: 2.9" x 2" (75x50mm)
Focusing Range: 0.95" (24mm)
Division of Fine Focusing: 0.00003935" (0.001mm)
Illuminator: Built-in Kohler LED illumination system
Condenser: N.A. 1.25 achromatic condenser
Illumination: Kohler, LED
Power Supply: 220v, CE certified
Built-in measurement capabilities
Weight: 28 lbs
Camera Specifications:
Camera Sensor: Sony IMX291
Sensor Type: CMOS
Sensor Resolution: 2MP (1920 x 1080)
Sensor Size: 1/2.8" class -- 6.06mm(w) x 4.42mm(h), 7.50mm(diag)
Pixel Size: 2.9µm
Dynamic Range: 128dB
Signal Noise Ratio: 30dB
Light Spectrum Response: 380nm to 650nm
HDMI Output: 1920x1080p60
Image Capture: 1920x1080
Image Format: JPEG
Video Capture: 1920x1080 @ 30fps, 1280x720 @ 60fps
Video Format: MOV
Storage: MicroSD Card (TF) max 128GB (not included)
Power: 5V (micro USB)
Packing List :
1 Trinocular Compensation-Free Head
1 Microscope Body with Frame, Base, and Kohler Illumination System
5 High Quality DIN Plan Achromatic Objectives: 4X, 10X, 20X, 40X and 100X
2 Pairs of Extreme Widefield Eyepieces WF10X & WF25X
1 Dust Cover
1 Immersion Oil
One HDMI camera
One HDMI cable
One power adapter for the camera
One 0.5X C-mount reduction lens
1 User's Manual Download
